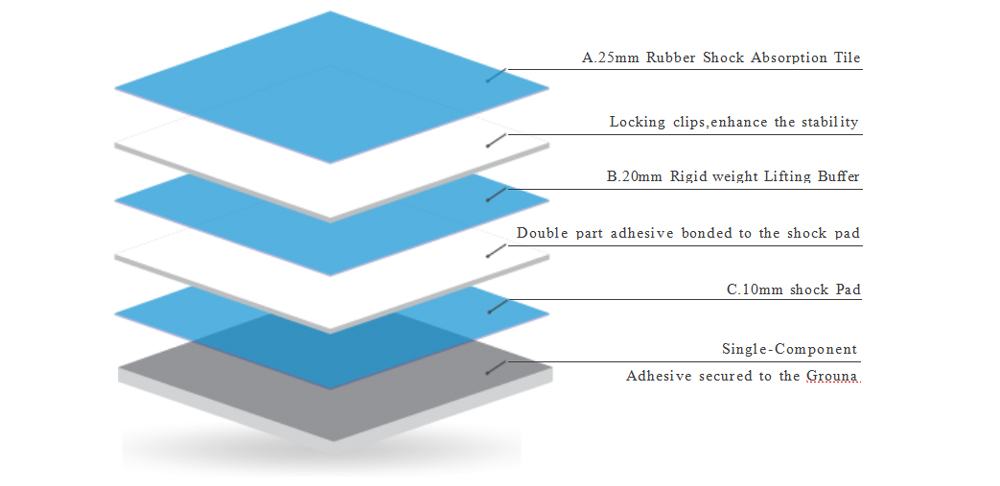

Structural Solution Using a 25mm Rubber Shock Absorption Tile + 20mm Rigid Weight Lifting Buffer + 10mm Soundproof Shock Pad. As Shown:

Solution Introduction

The Base style surface layer applied with a 1.8mm SBR roll material, while the bottom layer is a combination of foam and sole material, molded by HT&HP technology. The rubber floor mat is spe- cifically designed for strength areas and free weight zones, with shock absorption and noise reduc- tion as the main performance standards. It is built to withstand heavy weights and repeated high-impact forces, demonstrating strong support strength and friction properties

B. Weight Lifting Buffer-Pro Style

Weight Lifting Buffer Pro is designed for strength cushioning, to withstand repeated heavy impacts, and to ensure moderate elasticity. Compared with Base Style, Pro Style has better strength and sup- port performance.

C. 10mm Shock Pad

Weight Lifting Buffer Shock pad is designed for noise reduction and cushioning needs.The shock pad is made of foam and PU particles as raw materials, molded and rotary cut.

According to this solution plan:25mm Rubber Shock Absorption Tile + 20mm Rigid Weight Lifting Buffer + 10mm Soundproof Shock Pad, can effectively reduce 90% shock and 90% noise.

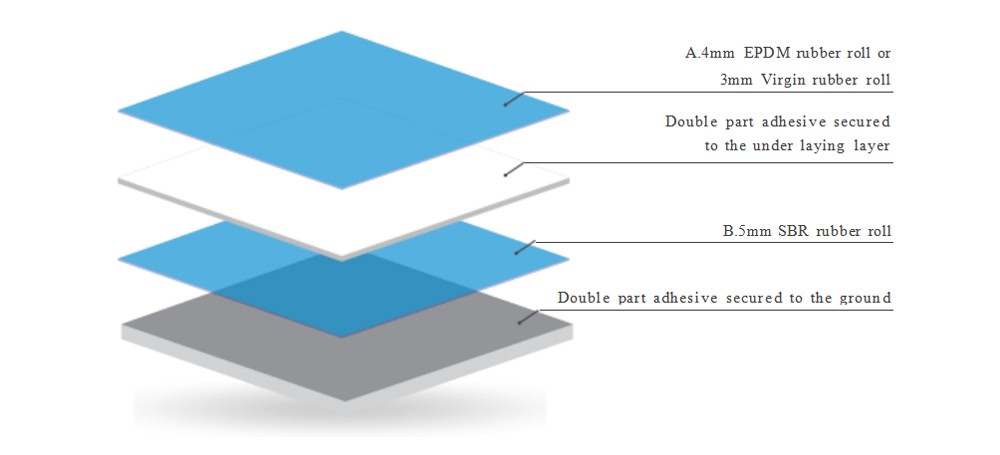

Structural Solution Using a 4mm EPDM rubber roll or a 3mm virgin rubber roll+5mm rubber roll.As Shown:

4mm EPDM rubber roll, as known as Rubber Roll- Max Style using EPDM powder and EPDM crumb as raw material, the product is molded and spiral-cut through HT&HP technology. Made from 100% EPDM particles to ensure product performance, the Max Style offers superior performance com - pared to the Pro Style. It excels in friction, cushioning, load-bearing capacity, and resistance to re- peated high-impact forces, also easier to clean.

3mm virgin rubber roll applied with natural rubber and produced through open mixing, internal mixing, and calendering processes. The virgin rubber roll is ideal for aerobic areas, equipment ar- eas,dancing areas, rehabilitation areas. Virgin rubber roll has a unique performance in terms of fric- tion, strength support, and cushioning.

The Base Style uses 40-mesh SBR rubber tire powder as the base material, mixed with 15% EPDM particles. It is molded and spiral-cut using HT&HP technology. The base color is black, accented with various colored EPDM particles, creating a range of colors to offer more possibilities for different en- vironments. The Base series also performs excellently in terms of friction, cushioning, load-bearing capacity, and repeated high-impact forces.

According to this solution plan:4mm EPDM Rubber Roll/3mm Virgin Rubber Roll +5mm SBR Rubber Roll, can effectively reduce 70% shock and 50% noise.

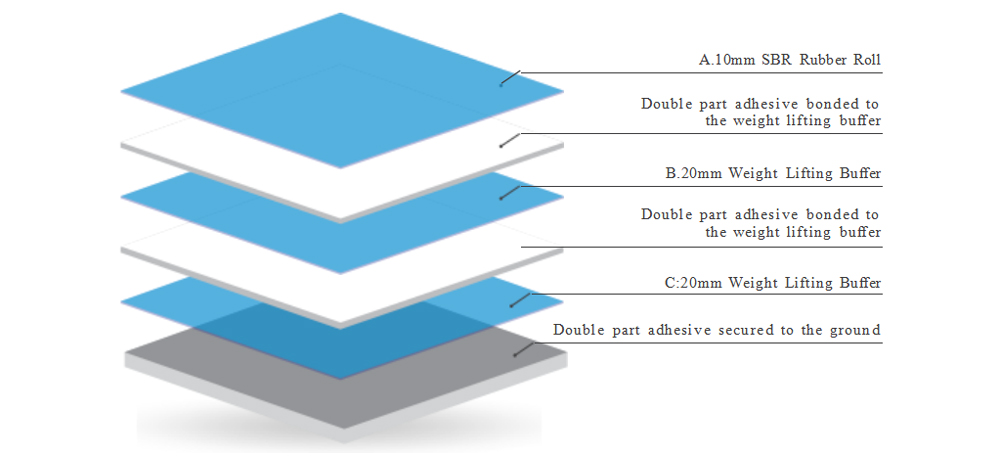

Structural Solution Using a 10mm SBR Rubber Roll+20mm Rigid Weight Lifting Buffer+20mm Rigid Weight Lifting Buffer. As shown:

The 10mm rubber roll, as known as Base Style uses 40-mesh SBR rubber tire powder as the base material, mixed with 15% EPDM particles. It is molded and spiral-cut using HT&HP technology. The base color is black, accented with various colored EPDM particles, creating a range of colors to offer more possibilities for different environments. The Base series also performs excellently in terms of friction, cushioning, load-bearing capacity, and repeated high-impact forces.

Weight Lifting Buffer Pro Style is designed for strength cushioning, to withstand repeated heavy im- pacts, and to ensure moderate elasticity. Pro Style is made of 40 mesh SBR rubber granules as raw material, rotary cut and compounded.It is built to withstand heavy weights and repeated high-im- pact forces, demonstrating strong support strength and friction properties

Weight Lifting Buffer Pro Style is designed for strength cushioning, to withstand repeated heavy im- pacts, and to ensure moderate elasticity. Pro Style is made of 40 mesh SBR rubber granules as raw material, rotary cut and compounded.It is built to withstand heavy weights and repeated high-im- pact forces, demonstrating strong support strength and friction properties.

According to this solution plan10mm SBR Rubber Roll+20mm Rigid Weight Lifting Buffer+20mm Rigid Weight Lifting Buffer, can effectively reduce 90% shock and 90% noise.
